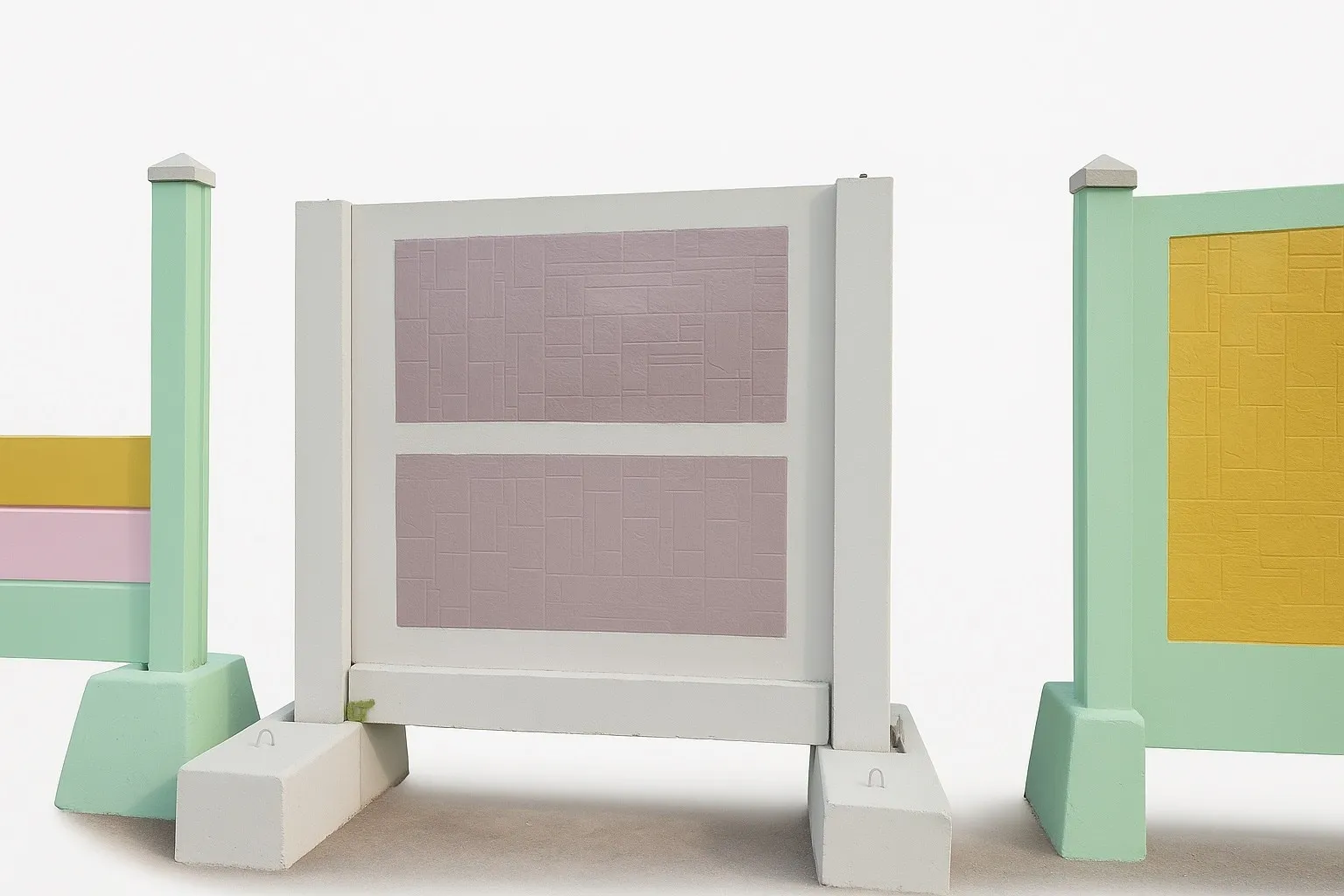

A structural precast wall begins with its purpose and site loads, not with a standard panel size. By the end, you will know how engineers move from wind, soil and handling actions to the panel, connection, foundation, erection sequence and quality records that make the wall safe to build and use.
Key takeaways
- Define the wall’s function before choosing panel thickness or reinforcement.
- Check service loads, durability exposure and lifting stresses in the panel design.
- Match footing size and reinforcement to soil, water and overturning demands.
- Require connection details, erection stages and signed design calculations before production.
Define the wall’s job before sizing any panel
A wall’s job determines its loads, supports and failure modes before anyone chooses a panel thickness. Define whether it provides boundary security, soil retention, wind shielding, acoustic separation or support for another structure. A precast boundary panel designed only as a fence is not automatically suitable for retaining soil.
1. Record every design action: self-weight, wind pressure on walls, impact from vehicles or equipment, surcharge from nearby traffic or stored materials, lateral earth pressure, groundwater and seismic effects.
State the governing code, site exposure, wall height, openings, shielding and importance category; a solid wall and a perforated wall do not attract the same wind load.
2. For soil retention, specify the drainage condition and check sliding, overturning, bearing pressure and global stability. Free-draining backfill, filter fabric, perforated drains and weep holes or relief outlets reduce hydrostatic pressure. Blocked outlets can impose far greater loads than the original earth pressure.
3. For a freestanding wall, trace wind force through the panel, posts, sockets or welds, footing and surrounding soil. Check the complete load path, including shear, bending or moment transfer, anchor pull-out and breakout, grout or pocket strength, corrosion protection, sliding and overturning.
The connection is part of structural wall design, not an installation afterthought. Include panel length, post spacing, joint width, footing level, plumbness, insert location, lifting-anchor position and adjustment allowance; accumulated tolerances can make a sound calculation impossible to build.
Design the panel for service loads, durability and handling
A heavy structural wall is designed as a continuous load path, not merely as a barrier between properties. Its panel must resist service-load deflection and cracking, survive its exposure, and remain safe while lifted, transported, braced and connected.
| Feature | Standard compound wall | Heavy structural wall |
|---|---|---|
| Panel thickness | Sized for self-weight, wind and routine handling | Increased for bending, shear, stability and connection forces |
| Reinforcement diameter and spacing | Light mesh or bars for crack control | Calculated bars for flexure, shear, temperature and handling stresses |
| Prestressing strand arrangement | Usually absent | Positioned and tensioned to control tensile stress, deflection and lifting cracks |
| Concrete strength and cover | Basic specification for ordinary exposure | Selected with permeability, exposure, fire and durability limits in mind |
| Connections and erection | Simple posts or sockets | Designed joints, lifting anchors, temporary braces, shims and adjustment tolerances |
Nominal concrete strength alone will not prevent cracks. Engineers also check reinforcement placement, concrete cover, curing temperature and duration, shrinkage restraint, temperature gradients, lifting points and temporary supports; a panel can crack during stripping even when its cube results pass.
Specify the exposure before choosing cover and crack-width limits. Chlorides, industrial chemicals, wetting and drying, abrasion or freeze-thaw conditions can change the concrete mix and reinforcement detailing. A boundary panel is not automatically a retaining wall: soil pressure, surcharge, groundwater, drainage, sliding, overturning and bearing require a separate design.
Final inspection should confirm dimensions, insert and anchor locations, cover, honeycombing and unacceptable cracks.
Match the foundation to soil, water and stability demands
A standard footing size is not a design. Engineers begin precast wall foundation design with the geotechnical report: soil bearing capacity, settlement, friction, groundwater and drainage, frost depth or scour, and the wall’s wind and overturning demands.
| Option | What it does | When it applies |
|---|---|---|
| Cantilever footing | Uses a reinforced base projecting from the wall line to resist overturning | Competent soil with adequate bearing area and moderate wall loads |
| Isolated post foundations | Gives each post its own pad, pier or pedestal | Stable soil, widely spaced posts and predominantly wind-driven loading |
| Grade beams | Ties separate foundations together and distributes bending and settlement effects | Variable soil, sloping sites or walls needing a continuous load path |
| Piles | Transfers vertical and lateral actions to deeper, stronger strata | Low soil bearing capacity, deep soft layers, scour risk or severe loads |
| Socketed posts | Fixes posts inside drilled concrete sockets or rock holes | Restricted excavation, rock, or walls governed by post bending and wind |
A retaining wall needs more than a wind-resistant fence footing. The calculation must include lateral earth pressure, surcharge, groundwater pressure, sliding, overturning, bearing pressure and global stability; drainage behind the wall prevents water pressure from deciding the failure mode.
Expansive soil demands movement control or removal and replacement, while slope stability may govern the entire foundation line. A pile or deeper socket cannot rescue a slope that is already unstable. Where settlement differs between supports, grade beams or a revised layout can prevent cracked panels and jammed joints.
Make connections, joints and erection stages carry the load
Force reaches the foundation through a designed panel-to-post connection, not through panel weight alone. The detail must transfer vertical shear and, where required, bending moment and tension into the post, socket, footing or grade beam. Check anchor pull-out and breakout, edge distance, grout or pocket strength, corrosion protection and the specified load combination.
Grouted sleeves and dowels can provide continuity, but only after the grout reaches its design strength.
- Show the complete load path from panel reinforcement through inserts, bolts, welds or dowels into the foundation and surrounding soil.
- State the joint’s performance objective: shear transfer, moment continuity, water exclusion, adjustability or future replacement.
- Specify grout strength, curing requirements, bearing surfaces and inspection access; an unfilled pocket is not a structural connection.
- Allow for precast wall construction tolerances, including accumulated variation in panel length, post spacing, footing level, plumbness and insert location.
- Detail shims, oversized holes or adjustable plates where erection tolerances could prevent the connection from closing safely.
Erection stability is a separate design case. Brace each panel until the specified connection strength develops, and do not rely on the completed wall’s wind resistance while adjacent panels or infill remain incomplete. Release temporary braces only after the engineer’s stated sequence confirms that the posts, joints and foundation can resist the construction-stage loads.
A wall that works after completion can still overturn during installation.
Check the manufacturer’s design package before production
Do not release a heavy wall for production until the manufacturer’s package shows how the panel survives service, transport and erection. A single wind-pressure figure is not enough.
1. Require signed drawings showing panel thickness, reinforcement, prestressing, cover, posts, joints, connection hardware, foundation interfaces, lifting anchors and temporary bracing. Include transport support points and the erection sequence, including when braces can be removed.
2. Require calculations naming the governing design standard and design load combinations. They should show wind assumptions for terrain, height, openings, shielding and importance; also check self-weight, impact, surcharge, earth pressure, seismic effects, sliding, overturning, soil bearing and the complete load path.
3. Request precast wall quality control records for reinforcement identity and placement, cover, embedded-item location, concrete workability, batch and casting records, curing temperature and duration, strength tests, dimensions, lifting-anchor installation, honeycombing and unacceptable cracks. Strength results alone do not verify the panel.
4. Give the designer a current survey, wall height and alignment, geotechnical report, groundwater level, wind exposure, nearby roads or stored materials, seismic design parameters, utilities, access restrictions and crane locations. Confirm the durability exposure class and required crack-width limit.
Whether you buy from Triilok Precast or another supplier, reject a package that treats lifting anchors and temporary bracing as site improvisations; handling stresses can exceed those in the completed wall.
Related products
 | Heavy Prestress Precast Wall we “Trilok Precast” are the leadingmanufacturer of a wide range of Concrete Walls, Portable Office, Labour Quarter, Footpath and Garden Curbing, etc. View product → |
 | Single Piece Precast Wall Wall Height 1.5 m (5 ft) Panel Thickness 50 mm Wall Type Compound wall Material RCC Built Type Panel Build Post Size 100x100 mm Concrete Grade M20... View product → |
Frequently asked questions
What must you define before sizing a precast wall panel?
Define whether the wall provides boundary security, soil retention, wind shielding, acoustic separation or structural support. Each function creates different loads and failure modes.
What loads must a structural precast wall panel withstand?
Check service loads, wind pressure, earth pressure when retaining soil, durability exposure, lifting stresses and transport or erection loads.
How do you match a precast wall foundation to site conditions?
Size the foundation for soil bearing capacity, groundwater, drainage, sliding and overturning. Use a geotechnical report and provide reinforcement and drainage details where required.
What should connection and erection details show?
The design package should identify joints, embeds, reinforcement continuity, lifting points, temporary bracing and the load path during every erection stage.
What should you review before a manufacturer starts production?
Review signed calculations, panel drawings, reinforcement schedules, concrete specifications, connection details, foundation drawings, lifting points and inspection documents.
