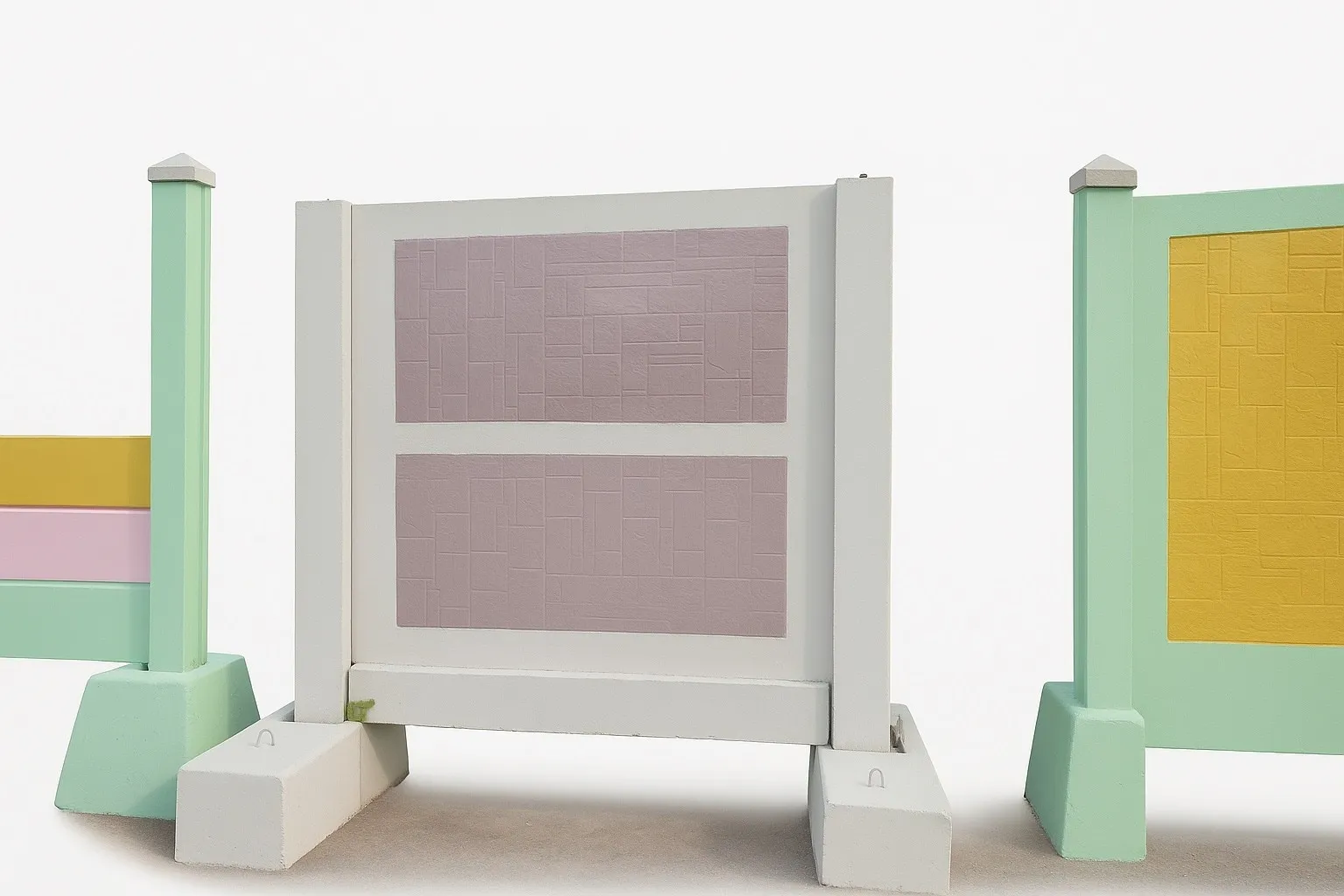

A heavy precast wall is not judged by panel thickness or concrete grade alone: wind, soil, connections, foundations and handling stresses determine whether the system is fit for purpose. By the end, you will be able to compare wall types, request the right structural evidence, assess whether a 50 mm panel is suitable, and identify installation risks before the wall is erected.
Key takeaways
- Size panels for wind, handling, connections and foundation reactions—not concrete grade alone.
- Request design calculations, concrete test results, reinforcement details and connection drawings.
- Check level bearings, post embedment, foundation alignment and drainage before lifting panels.
- Reject cracked panels, unstable posts, rocking bearings and inadequate bracing during inspection.
What Counts as a Heavy Precast Wall?
A practical heavy precast wall definition is a factory-made reinforced-concrete wall element sized for wind, handling, connections and foundation reactions—not merely a decorative panel. Concrete grade alone does not establish capacity: a wall can fail through panel bending, post bending, sliding, overturning, weak bearings or poor embedment.
| Wall type | What it means | When it applies |
|---|---|---|
| Ordinary RCC panel | A conventional reinforced-concrete panel with non-prestressed bars or mesh | Suitable for moderate heights, short support spacing and normal wind exposure when its reinforcement, thickness and lifting details are designed |
| Prestressed concrete panel | Tendons are tensioned before or after casting to control cracking and improve bending efficiency | Useful for longer spans, slimmer sections, repeated production and demanding handling loads, provided the manufacturer supplies release-strength and prestress data |

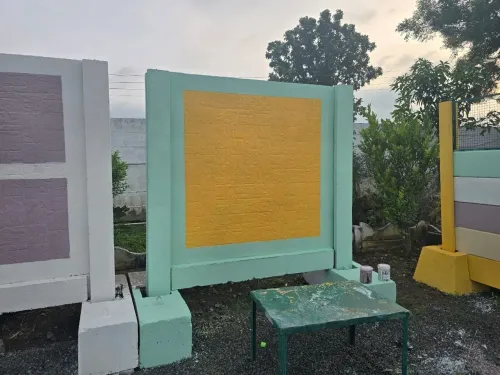

| Post-and-panel compound wall | Separate posts carry panels seated between them; the posts, foundations, bearings and joints complete the load path | Appropriate for fast boundary construction, replacement of individual panels and layouts requiring repeated bays |
A post-and-panel compound wall is a system, not automatically a heavy-duty wall. Its performance depends on post spacing, footing width, embedment, joint restraint and panel bearing.
Choose ordinary RCC panels for simpler, lower-demand boundaries. Choose prestressed panels when span, crack control or lifting efficiency justifies specialist production. For vehicle-impact exposure, high wind or retained soil, demand a designed wall system rather than selecting a panel by thickness or concrete M-grade alone.
How to Choose Panel Thickness and Structural Capacity
Choose precast wall thickness from the design loads, not from a standard catalogue size. Wall height, panel width, unsupported span, post spacing, wind pressure and reinforcement depth determine bending; thicker concrete can reduce stress but increases dead load, lifting force, transport cost and footing reactions.
| Condition | What to check | Design consequence |
|---|---|---|
| Low boundary wall | Wall height, unsupported span, wind exposure and panel-to-post connection | Check panel bending, post bending, sliding, overturning and support bearing |
| High or exposed wall | Local wind pressure, corner and end zones, connection strength and footing resistance | Increase reinforcement, section depth, post capacity or reduce panel span |
| Impact-prone site | Vehicles, machinery, livestock and accidental loading | Design impact separately; wind capacity alone does not protect the panel |
| Raised ground or retained soil | Earth pressure, surcharge, groundwater, drainage and backfill compaction | Design a retaining system; do not treat a thick boundary panel as a retaining wall |
A 50 mm panel suitability assessment must include its wall height, unsupported span, wind zone, lifting stresses, cover, connection detail and impact risk. A thin panel may suit a short, sheltered fence; it is not automatically suitable for a tall or exposed installation.
Ask for separate calculations for service wind, handling and erection. Lifting inserts require the panel’s self-weight, lifting angle, uneven load sharing, dynamic effects, edge distance, bursting and concrete strength at lifting. Confirm release strength as well as 28-day strength. Higher concrete grade cannot compensate for inadequate reinforcement anchorage, post embedment or footing width.
If water collects behind the wall, provide drainage rather than relying on unverified soil bearing capacity.
What Strength and Quality Evidence Should a Manufacturer Provide?
A 28-day cube result is not enough: demand evidence for service, handling and connection loads separately. The design file should show panel self-weight, wind pressure from IS 875 Part 3, bending, deflection, crack limits, post bending, sliding, overturning, footing resistance and panel-to-post capacity. Include reinforcement diameter, spacing, cover, anchorage and lifting-insert calculations.
| Evidence | What it must show | Failure exposed |
|---|---|---|
| Concrete records | Concrete strength at release and 28-day compressive strength, linked to batch, cube test and curing log under IS 456 and IS 516 | Cracking during stripping or weak service concrete |
| Prestressing records | Prestressing wire grade or prestressing strand grade, jacking force, elongation, losses and release sequence under IS 1343 | Unverified prestress or poor transfer |
| Handling calculation | Panel weight, lifting angle, unequal load sharing, impact factor, edge distance, bursting and spalling checks | Anchor or corner failure during lifting |
| Connection evidence | Post pocket, bearing, bolts or grout details, anchorage and tested connection capacity | A strong panel failing at its support |
Ask for mould inspection, reinforcement-placement checks, cover measurements, batch traceability, curing temperature and duration, dimensional records, and cube-test reports bearing specimen dates. IS 15916 covers prefabricated concrete design and erection; use it alongside the project’s structural calculations.
Triilok Precast should identify the release strength and lifting sequence for each panel rather than provide only an M-grade label. A higher grade cannot compensate for inadequate footing width, embedment or connection anchorage. When fill or runoff reaches the wall, request drainage and soil-bearing assumptions too.
Related products
 | Heavy Prestress Precast Wall we “Trilok Precast” are the leadingmanufacturer of a wide range of Concrete Walls, Portable Office, Labour Quarter, Footpath and Garden Curbing, etc. View product → |
 | Single Piece Precast Wall Wall Height 1.5 m (5 ft) Panel Thickness 50 mm Wall Type Compound wall Material RCC Built Type Panel Build Post Size 100x100 mm Concrete Grade M20... View product → |
How Should the Foundation and Wall Be Installed?
Accept the wall only after the soil, footing, posts, joints, drainage and temporary bracing match the design—not merely after panels are standing.
1. Complete a soil investigation at the wall line. Confirm allowable bearing capacity, groundwater, expansive or loose fill, slope stability and backfill compaction. Raised fill or retained soil requires checks for earth pressure, surcharge, drainage pressure and differential settlement; a boundary panel is not automatically a retaining wall.
2. Set out the precast wall foundation from surveyed centres and finished-ground levels. Verify footing width, depth, reinforcement, concrete strength, bearing elevation and resistance to sliding and overturning. Do not rely on undocumented soil capacity.
3. Check post spacing, plumb, pocket dimensions and embedment depth before lifting panels. Confirm the foundation can develop the post’s bending and anchorage forces. Correct misplaced centres or shallow pockets before installation, rather than forcing panels into them.
4. Inspect each panel-to-post joint for the specified bearing length, joint gap, grout or hardware, reinforcement anchorage and corrosion protection. A joint sized for vertical bearing alone can fail under wind reversal, impact or differential movement.
5. Provide a positive drainage path where ground slopes toward the wall or fill rises behind it. Use graded surfaces, outlets or designed drainage layers to prevent water accumulation behind panels; blocked drainage changes the loading.
6. Install temporary bracing before releasing lifting equipment. Keep it in place until posts, panels, joints and foundations form the designed load path and grout or concrete reaches its specified strength. Recheck plumb and alignment after curing.
How Do You Inspect the Finished Wall and Reject Unsafe Work?
Acceptance starts with the design assumptions, not appearance. Compare surveyed post centres, finished-ground levels, panel dimensions, bearing elevations and joint gaps with the approved drawings and stated dimensional tolerances. Recalculate the final panel line for plumb, cumulative joint movement, minimum bearing length and the load path from panel through connection, post and foundation.
| Check | Accept only when | Reject when |
|---|---|---|
| Geometry | Survey confirms centres, levels, plumb and specified gaps | A forced panel fit, reduced bearing or out-of-plumb line changes the design |
| Connections | Hardware, grout, corrosion protection and bearing match the drawings | Grout is missing, cracked, unfilled, loose or the connection cannot transfer out-of-plane shear |
| Drainage | Runoff leaves the wall and backfill is compacted as specified | Water collects behind panels or unverified fill presses on them |
Do not accept a panel because its 28-day concrete strength passed. Check the recorded release strength, curing record, lifting orientation and temporary-bracing release; handling damage can occur before the design strength develops.
Reject panels with through-cracks, displaced reinforcement, exposed corroded steel, spalls at lifting anchors, crushed edges, open pockets or distortion that reduces bearing. Apply the specified crack limits; if the drawings give none, obtain the designer’s written decision rather than accepting by visual judgment.
Complete joint sealing after alignment and connection inspection. Sealant must be continuous, bonded to sound edges and free of voids; failed joint sealing admits water and accelerates corrosion. Keep temporary bracing until grout or concrete reaches its specified strength and the complete load path is active.
Frequently asked questions
What counts as a heavy precast wall?
It is a factory-made reinforced-concrete wall element designed for wind loads, lifting, connections and foundation reactions, rather than decoration alone.
How do you choose heavy precast wall thickness and capacity?
Choose thickness from panel span, wind pressure, reinforcement, lifting stresses, connection design, post spacing and foundation reactions—not concrete grade alone.
What evidence should a heavy precast wall manufacturer provide?
Request design calculations, panel and post reinforcement details, connection drawings, concrete grade and test records, lifting information and installation tolerances.
How should the foundation and wall be installed?
Verify foundation levels and alignment, provide sound bearings and drainage, achieve the specified post embedment, brace panels during installation and check connections before release.
